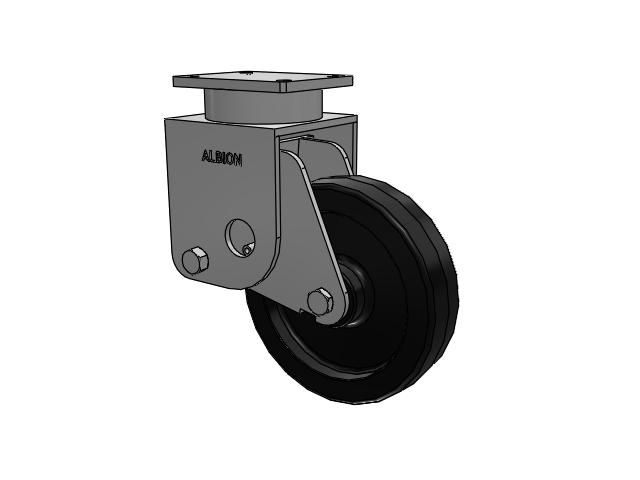

Above image may be representative or a CAD rendering; see 3D model below for additional views.

To see all size and options for this model or series, visit the Series Configurator and customize the series to your needs.

Part Number: S610MR12509S

Series: S610 Series Kingpinless

SKU: S610MR12509S Category: Casters Brand: Albion

Weight	0.00 lbs
Bearing Type	Tapered Roller
Capacity	1
Fastening Size	7 1/2" x 6 1/4"
FasteningType	Top Plate Swivel
Hardness	70-85 Shore A
Mount Height	16.8750
Swivel Lead	5.31250000
Swivel Radius	11.3125
Temperature Range	-40Â°F to +180Â°F
Tread Width	3.0000
Wheel Type	MR – Moldon Rubber (Cast Iron Core)
Wheel Color	Black Tread on Black Enamel Core
Wheel Diameter	12.0000
Wheel Face	Moderate crown

Spring Loaded

CAD

Interact and Download Native CAD models below. Rotate, zoom in/out, and see critical dimensions by utilizing your mouse.

Login required to download CAD
