| Weight | 32.50 lbs |
|---|---|
| Bearing Type | |
| Brake Type | |
| Capacity | |
| Fastening Size | |
| FasteningType | |
| Hardness | |
| Mount Height | |
| Swivel Lead | |
| Swivel Lock | |
| Swivel Radius | |
| Temperature Range | |
| Tread Width | |
| Wheel Type | |
| Wheel Color | |
| Wheel Diameter | |
| Wheel Face |

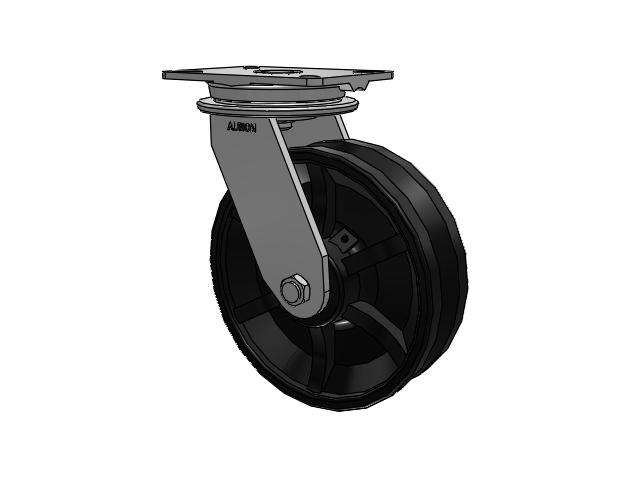

Part Number: 90VM10509SL
Our popular 90 Series is made from AISI 1045 drop forged steel and is highly recommended for rugged heavy duty applications. The deep-grooved load raceway provides better load distribution and the 3/8†steel ball bearing thrust raceway offers increased capacity. Zerk fittings on raceways and hollow axle gives easy maintenance access.
Series: 90 Series
CAD
Interact and Download Native CAD models below. Rotate, zoom in/out, and see critical dimensions by utilizing your mouse.
Login required to download CAD
